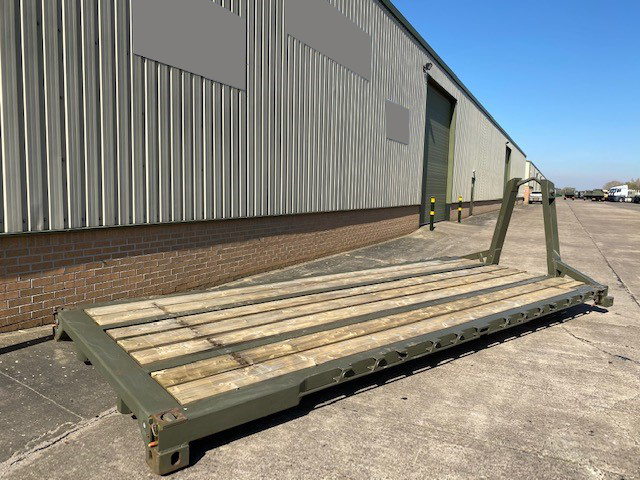

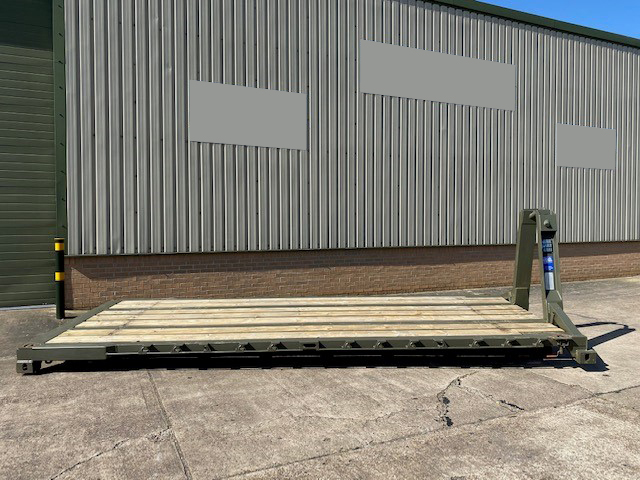

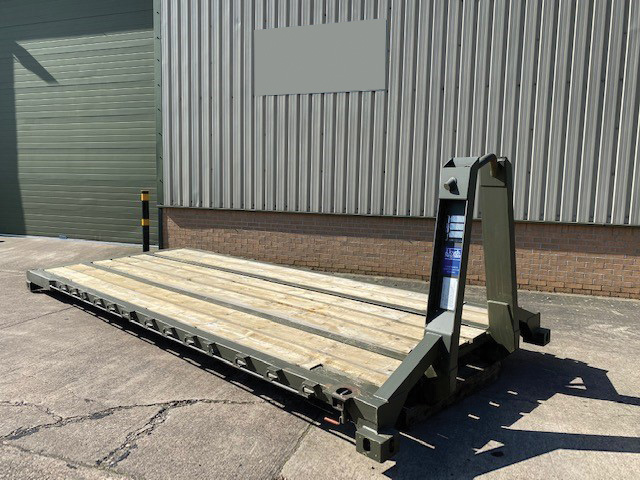

Drops 20ft ISO Flat Racks
Drops 20ft ISO Flat Racks
Product reference 50316
They can carry standard cargo, or 20ft ISO containers utilising the deployable integrated twist locks.
They feature:
Roping/load restraint points along full length of side rails

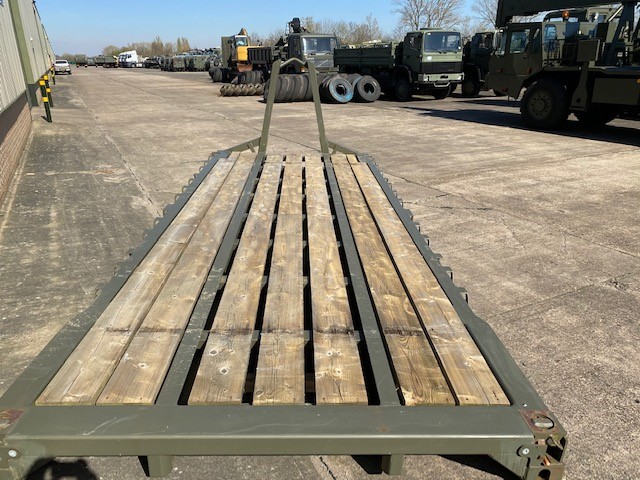

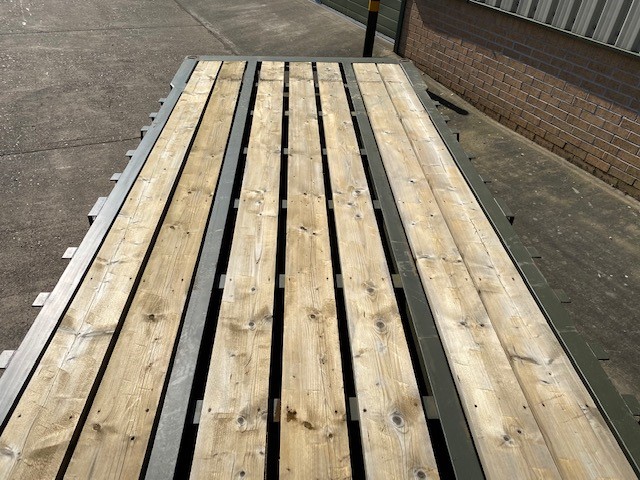

Heavy duty wooden boarding

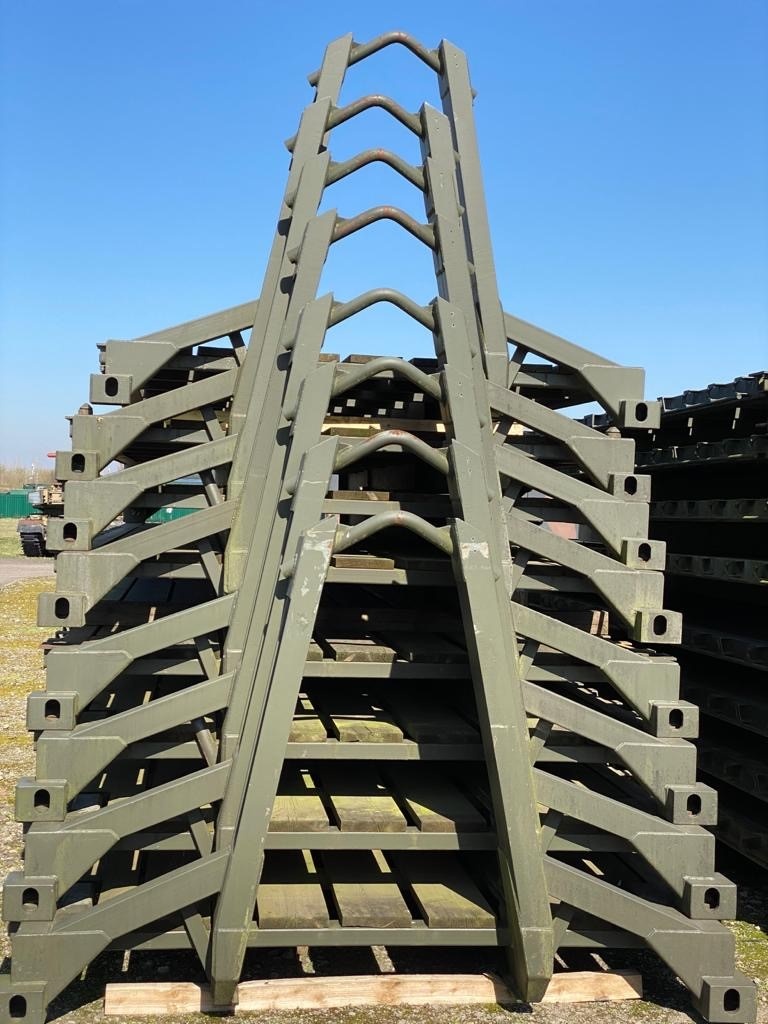

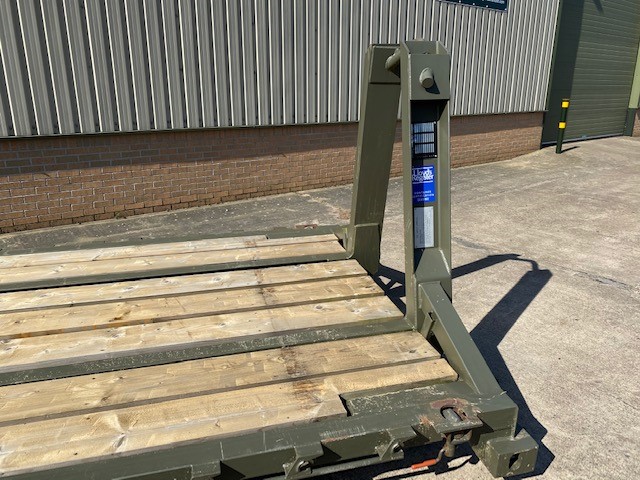

Easy pickup A Frame - Provided the hook of the load handling system is positioned within the capture area of the A frame when loading it will never fail to safely engage.
Front upward facing twist locks, with retractable rear ISO twist locks

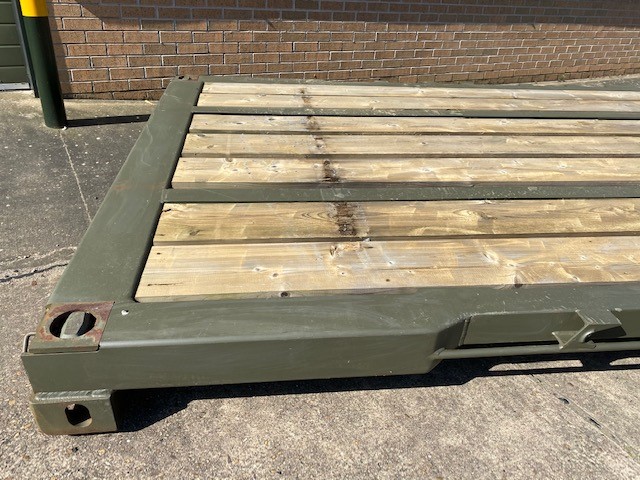

Downward facing ISO corner castings
UPN internal subframe
Mechanical stop for locking to bed of truck

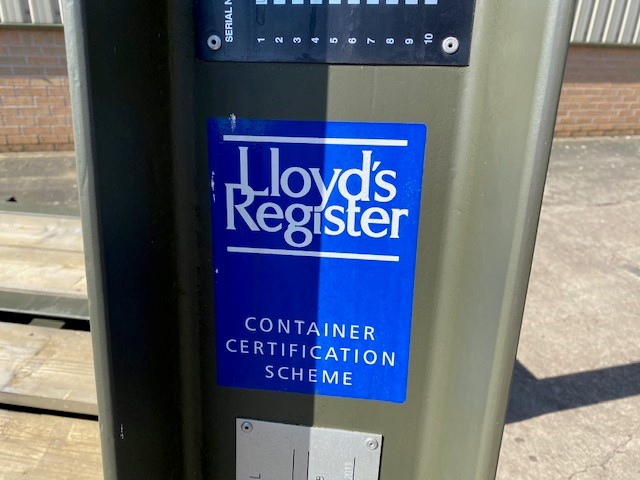

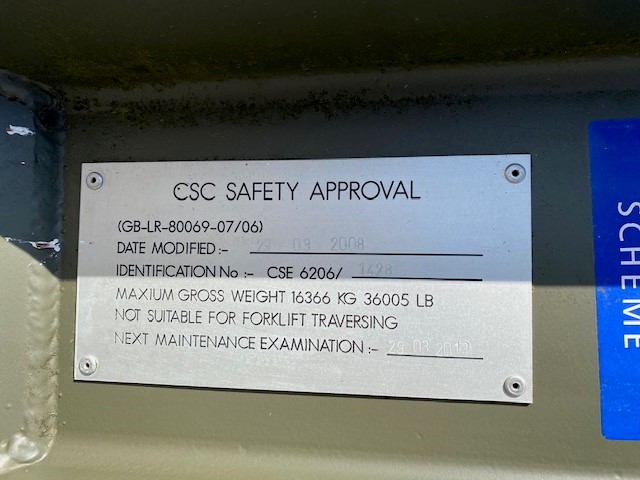

Lloyds/CSC plated
16,366kg Maximum Gross weight capacity
Dimensions (Approx.)
| Length: | 6.05m (Overall ISO closed) |
| Bed Length: | 5.87m |
| Overall length: | 6.25m (ISO leg extended) |
| Width: | 2.44m (Overall) |
| Width of bed: | 2.40m |
| Height: | 1.63m (Floor to top of capture hook) |
| Height: | 1.35m (Bed to top of capture hook) |
| Weight: | 1,500kg (Approx.) |
| Rail Width: | 0.9m (Internal) 1.06m (outside subframe) |
| Category | Miscellaneous |
| Manufacturer | Marshalls |
| Engine | n/a |
| Gearbox | n/a |
| Brakes | n/a |
| Steering | n/a |
| Maximum Load | 16,366kg |
| Electrics | n/a |
| Length × Width × Height | L: 6.05 × W: 2.44m × H: 1.63m |
| Gross Weight | 1,500kg approx |
| Date into Service | 2008 |
| Year of Manufacture | 2008 |
| Hours / Mileage | |

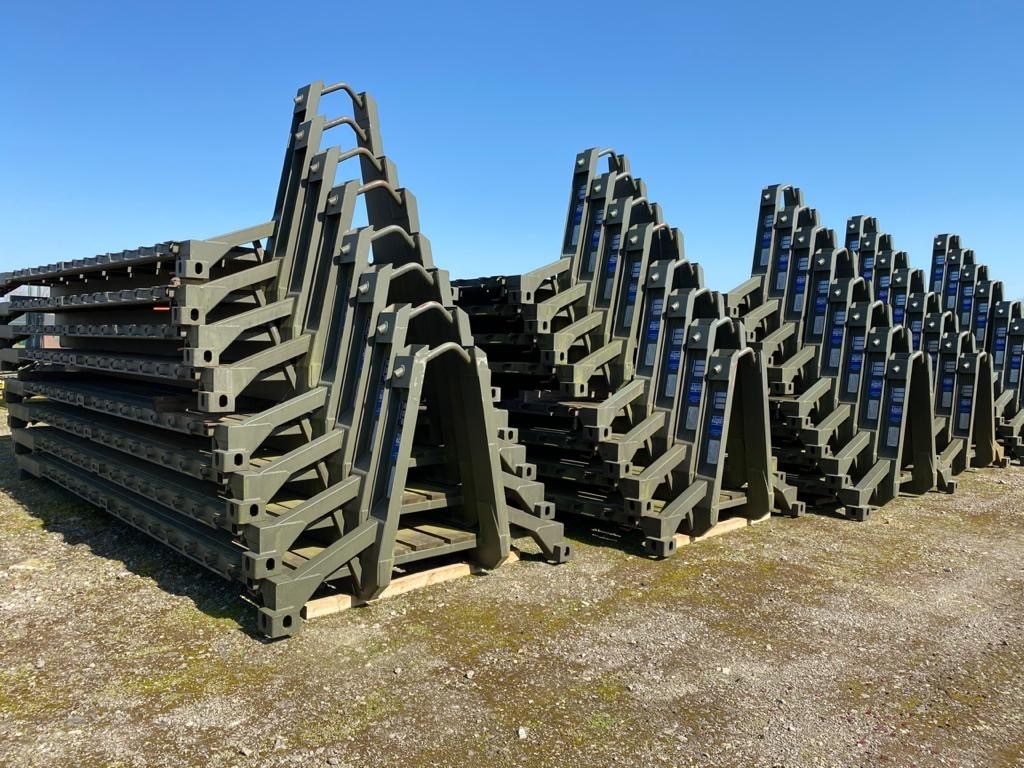

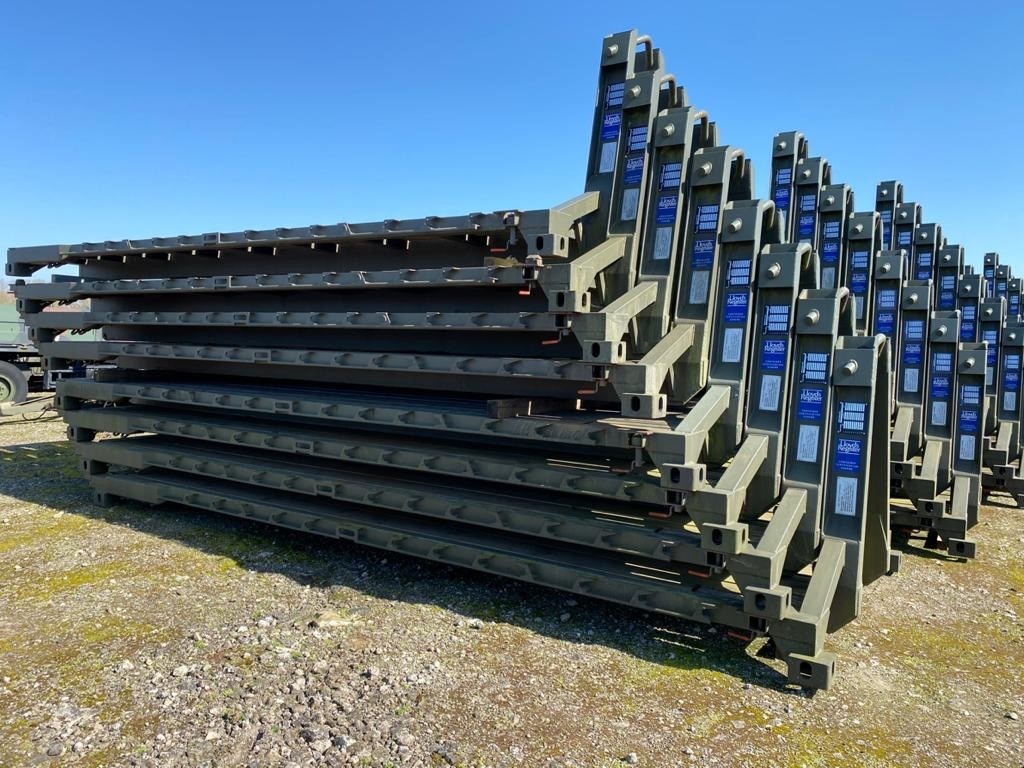

| Quantity Available | 100 |
| Export Requirements | SIEL |
We offer vehicles in the following conditions:
- As received from the relevant MoD with a workshop check to make sure it runs and drives, but with no reparatory works. (AS IS)
- Fully prepared, including servicing of all major components and a fresh coat of paint. (PREPARED)
Try our new RAL Colour Selector Tool by CLICKING HERE
Worldwide delivery available.
Any item which is military by design or has component parts designed for military use will require an export licence to be applied for if being exported from the United Kingdom. For details on export licencing go to: Our Export Licencing Assistant
